Sale!

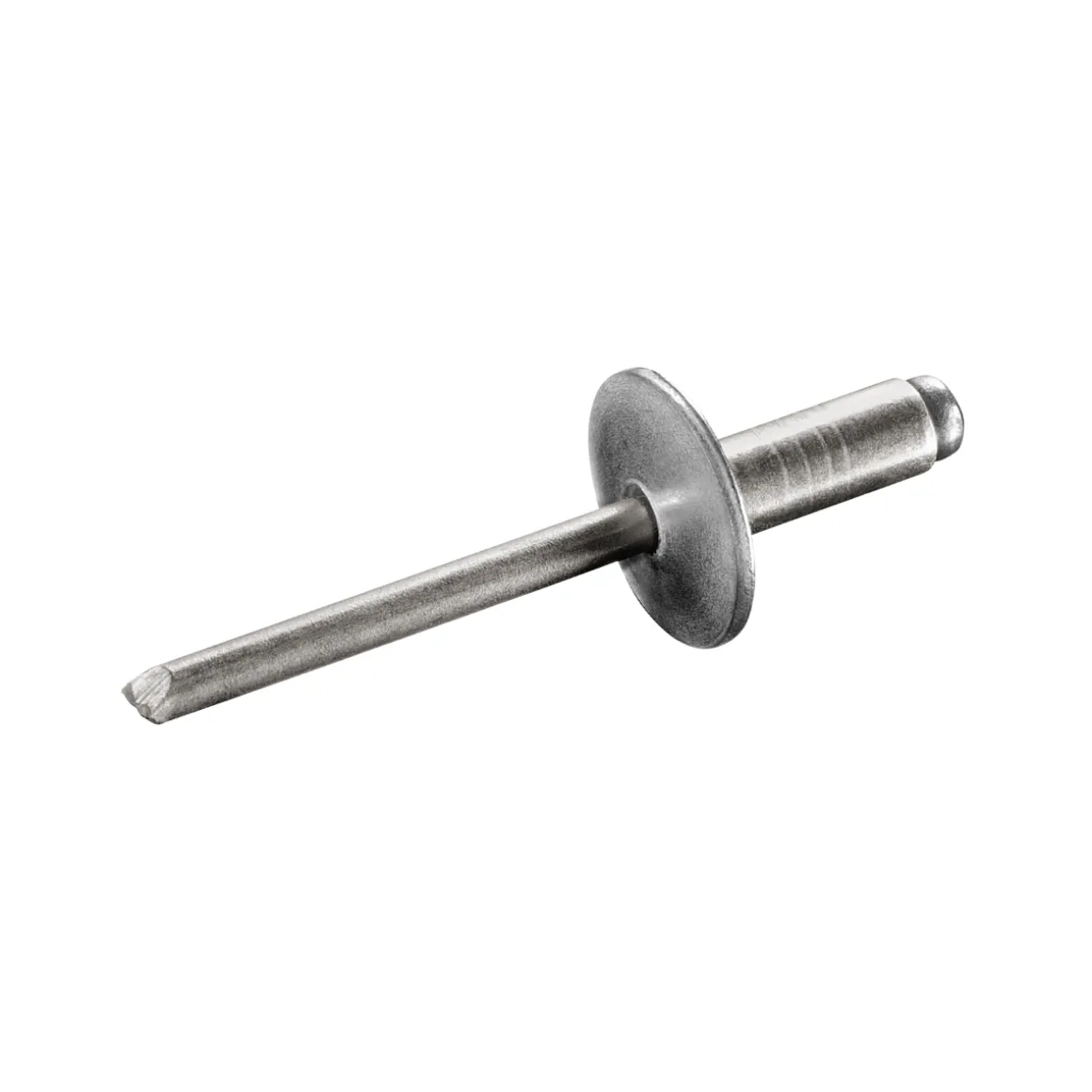

Großkopf Nieten Aluminium/Edelstahl A2 (Ø x L) 5,0 x 30,0 mm mit Großkopf – Großkopf Niete – Popniete – STANDARD
Original price was: €108.36.€73.87Current price is: €73.87.
| Artikel | Blindniete STANDARD AL/A2 – Großkopf K11 – 5,0x30 mm |
| Artikelnummer | 7021150300 |
| Produkttyp | Blindniete |
| Markenname | STANDARD |
| Hersteller | Goebel GmbH |

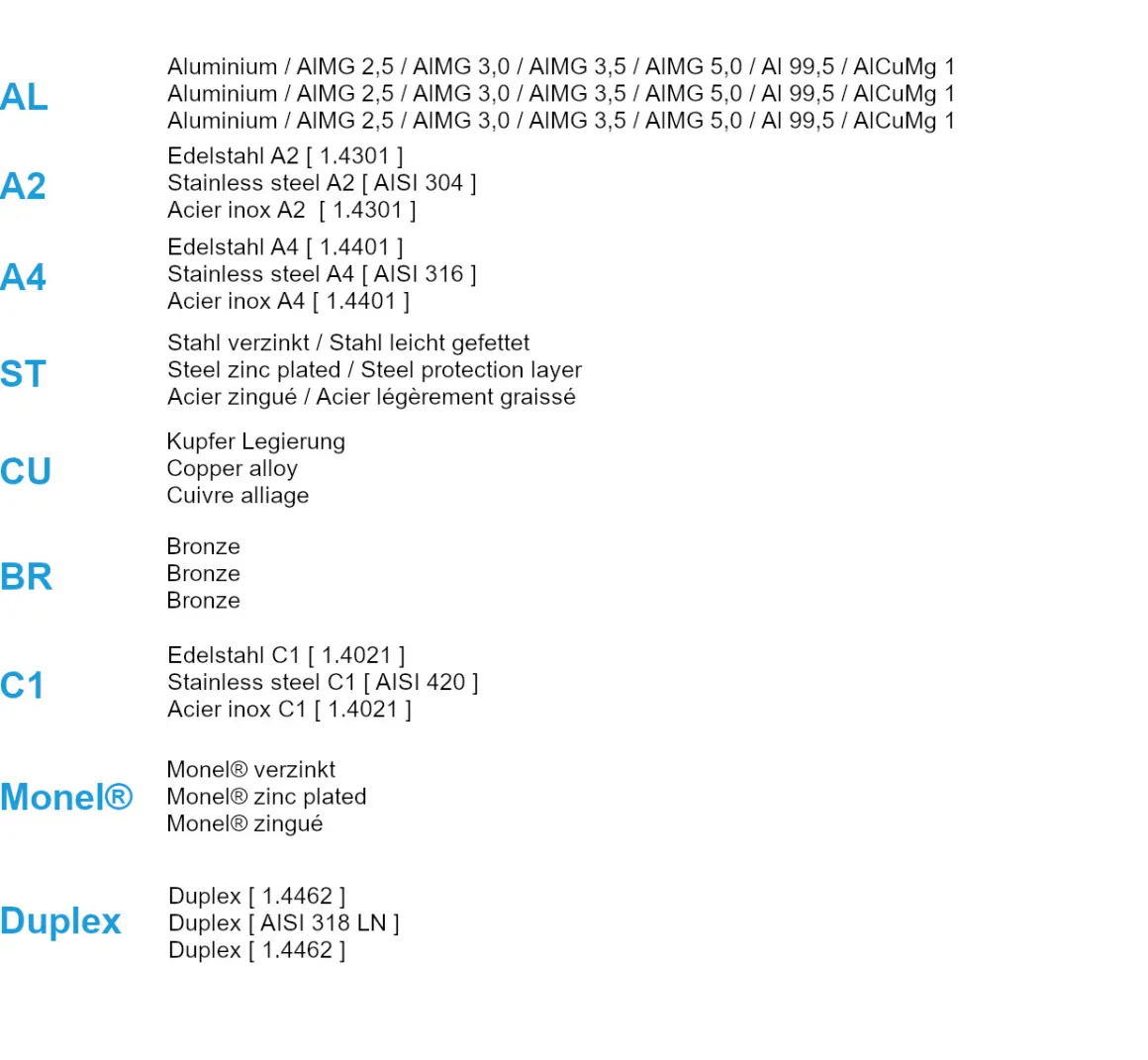

| Werkstoff Dorn | Edelstahl A2 [ 1.4301 ] |
| Werkstoff Hülse | Aluminium AlMG 5,0 |
| Kopfform | Großkopf |

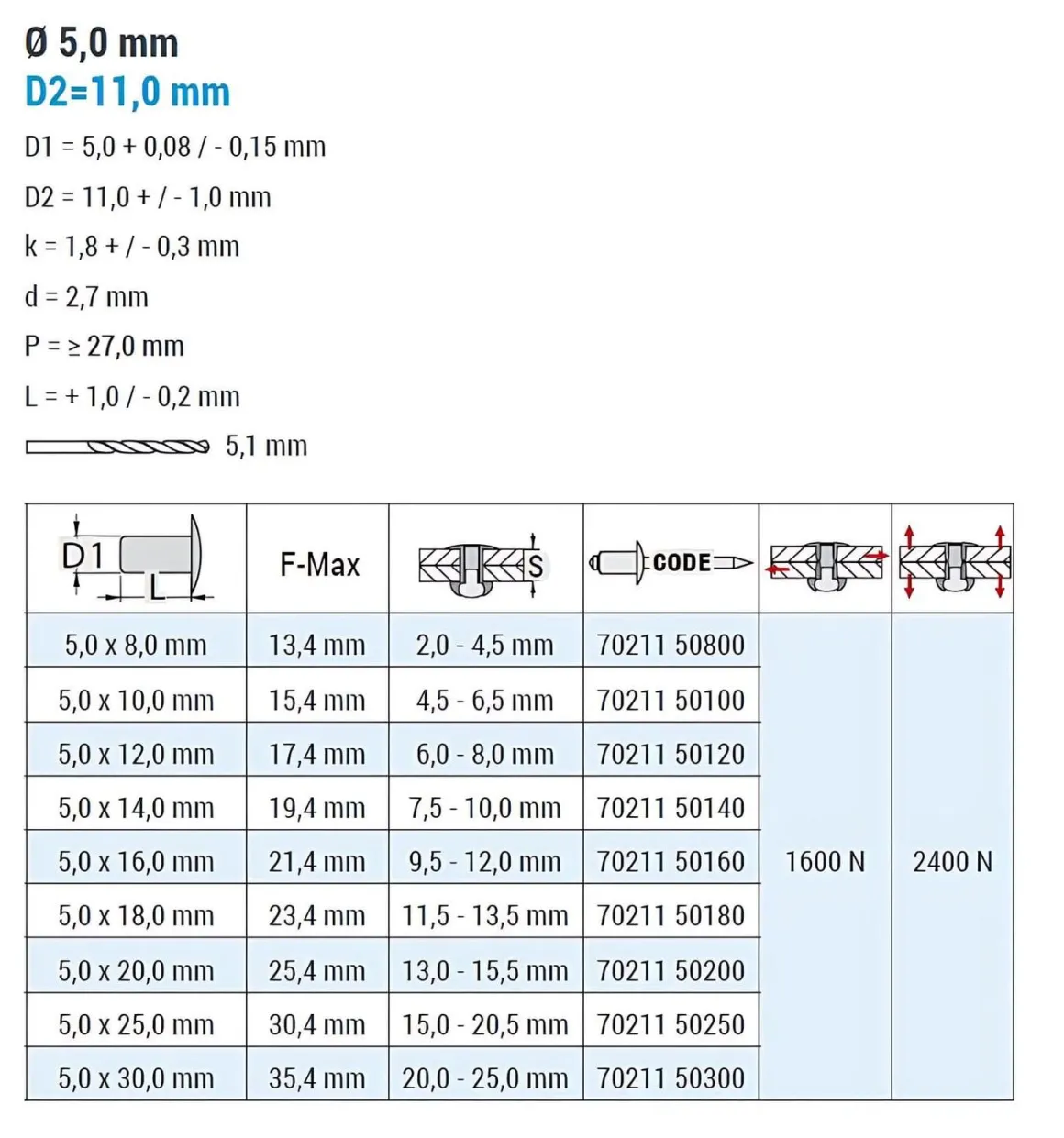

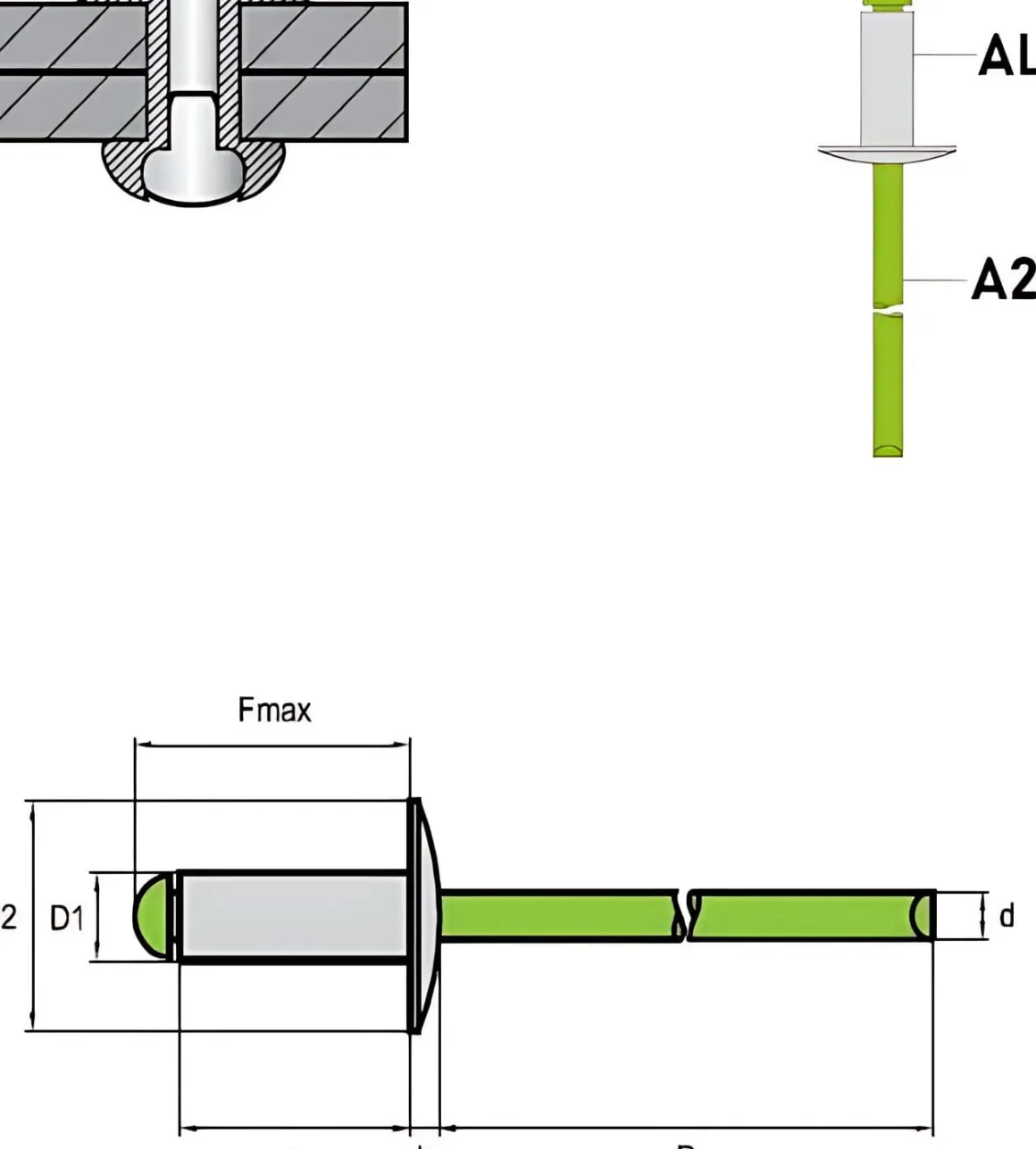

| Durchmesser (mm) | 5,0 |
| Durchmesser Kopf (D2) | 11,0 + / – 1,0 mm |
| Nietdorn Durchmesser (d) | 2.70 mm |
| D1 Toleranz | 5,0 + 0,08 / – 0,15 mm |
| Nenndurchmesser (D1) | 5.0 mm |
| Bohrer (Durchmesser–Vorbohren) | 5,1 mm |
| Länge (mm) | 30,0 |
| Länge (L) Toleranz | + 1,0 / – 0,2 mm |
| Länge Nietdorn (P) | ≥ 27,0 mm |
| Kopfhöhe (k) | 1,8 + / – 0,3 mm |
| F–Max | 35.4 mm |
| Scherbruchlast | 1600 N |
| Zugbruchlast | 2400 N |
| Klemmbereich min. | 20,0 mm |
| Klemmbereich max. | 25,0 mm |
| Geeignet für | Innen |
| Passendes Werkzeug | GO–3, GO–55, GO–360, GO–40, EL–64–R, GO–25–SN, EL–64–N, GO–12–R, AIRPOWER 1, AIRPOWER 2, AIRPOWER 3, GO–BR1, GO–TR1, GO–BR2 |
| VPE | 250 |
