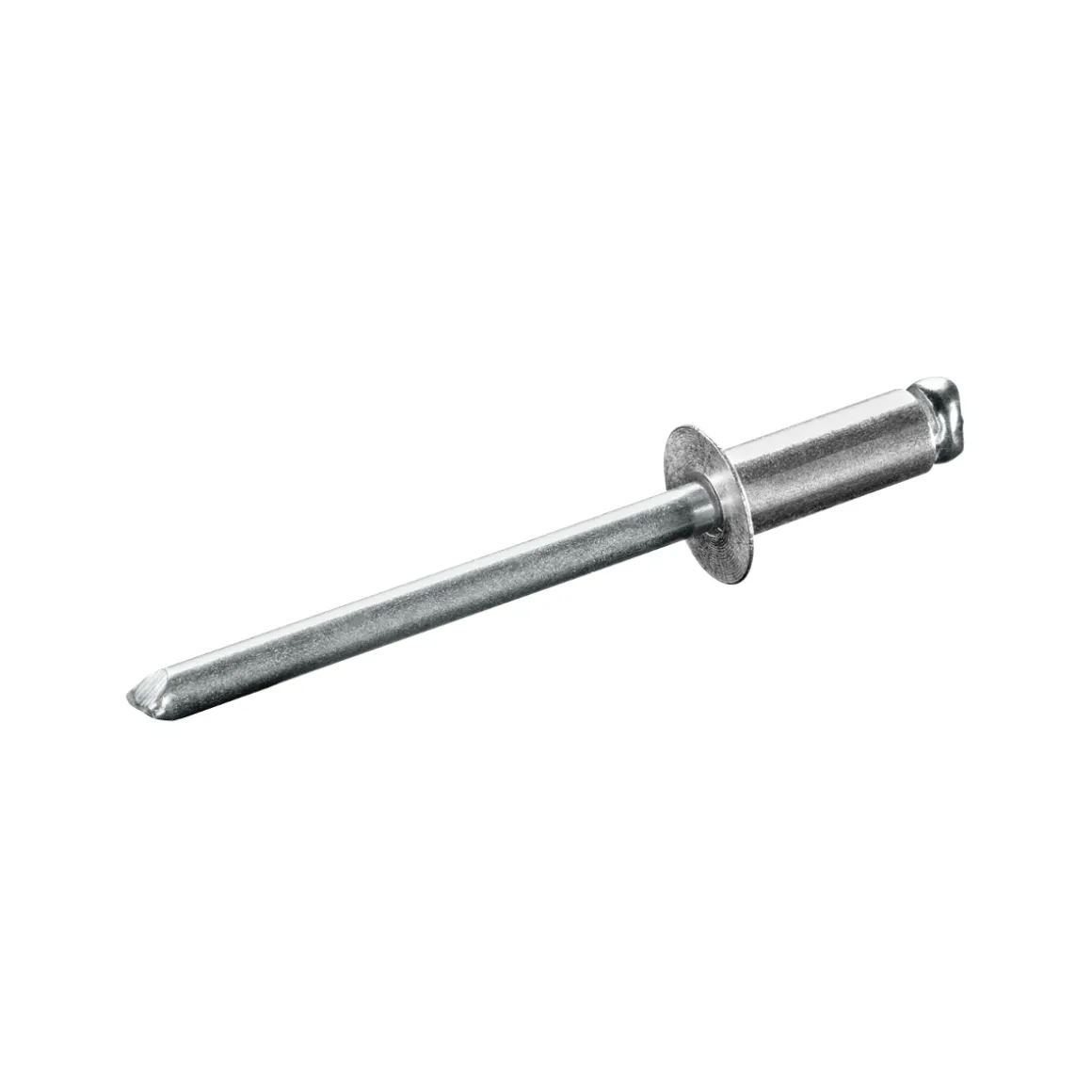

Senkkopf Nieten Aluminium/Aluminium (Ø x L) 4,8 x 12,0 mm mit Senkkopf ISO15982 – Senkkopf Niete – Popniete – STANDARD
Original price was: €61.92.€42.13Current price is: €42.13.
| Artikel | Blindniete STANDARD AL/AL – Senkkopf – 4,8x12 mm |
| Artikelnummer | 7070548121 |
| Produkttyp | Blindniete |
| Markenname | STANDARD |
| Hersteller | Goebel GmbH |
| Werkstoff Dorn | Aluminium |
| Oberfläche Dorn | Aluminium Legierung |
| Werkstoff Hülse | Aluminium AlMG 2,5 |
| Kopfform | Senkkopf |

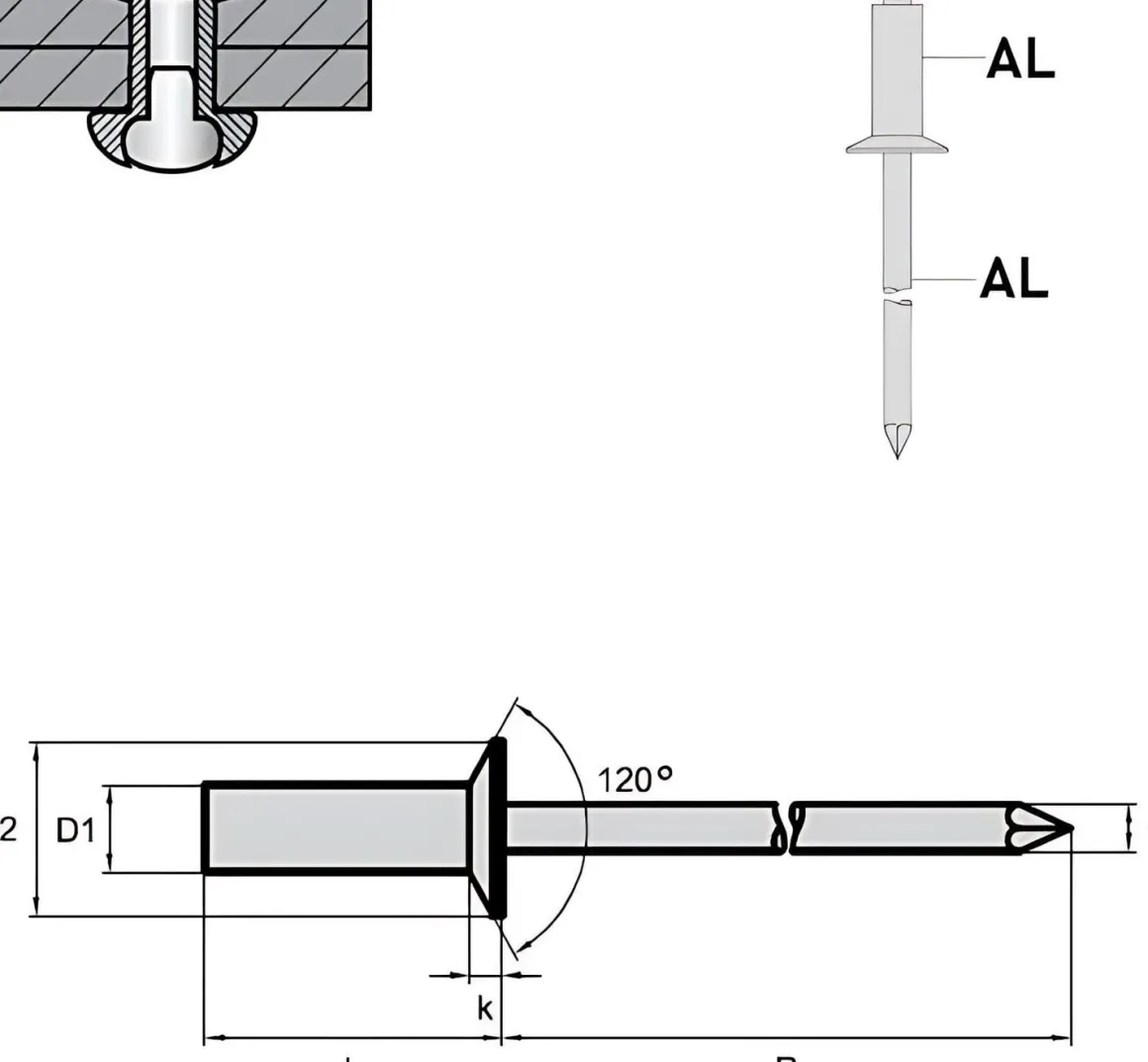

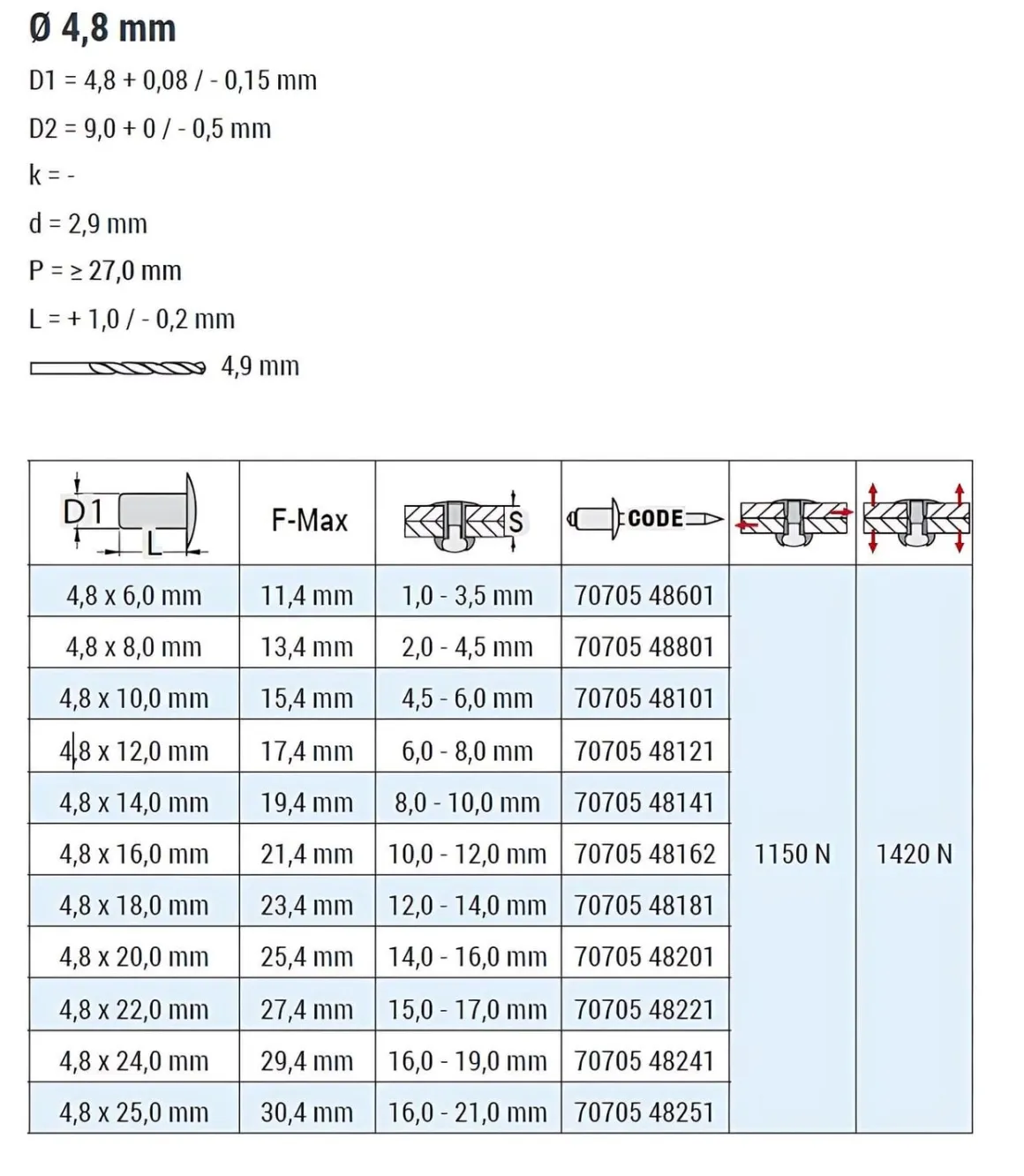

| Durchmesser (mm) | 4,8 |
| Durchmesser Kopf (D2) | 9,0 + 0 / – 0,5 mm |
| Nietdorn Durchmesser (d) | 2.90 mm |
| D1 Toleranz | 4,8 + 0,08 / – 0,15 mm |
| Nenndurchmesser (D1) | 4.8 mm |
| Bohrer (Durchmesser–Vorbohren) | 4,9 mm |
| Länge (mm) | 12,0 |
| Länge (L) Toleranz | + 1,0 / – 0,2 mm |
| Länge Nietdorn (P) | ≥ 27,0 mm |
| Senkkopf Grad | 120° |
| F–Max | 17.4 mm |
| Scherbruchlast | 1150 N |
| Zugbruchlast | 1420 N |
| ISO–Norm | ISO15982 |
| Klemmbereich min. | 6,0 mm |
| Klemmbereich max. | 8,0 mm |
| Geeignet für | Innen |
| Passendes Werkzeug | GO–3, GO–55, GO–360, EL–48–R, GO–40, EL–64–R, GO–25–SN, EL–64–N, GO–12–R, AIRPOWER 1, AIRPOWER 2, AIRPOWER 3, GO–BR1, GO–TR1, GO–BR2 |
| VPE | 500 |
