Sale!

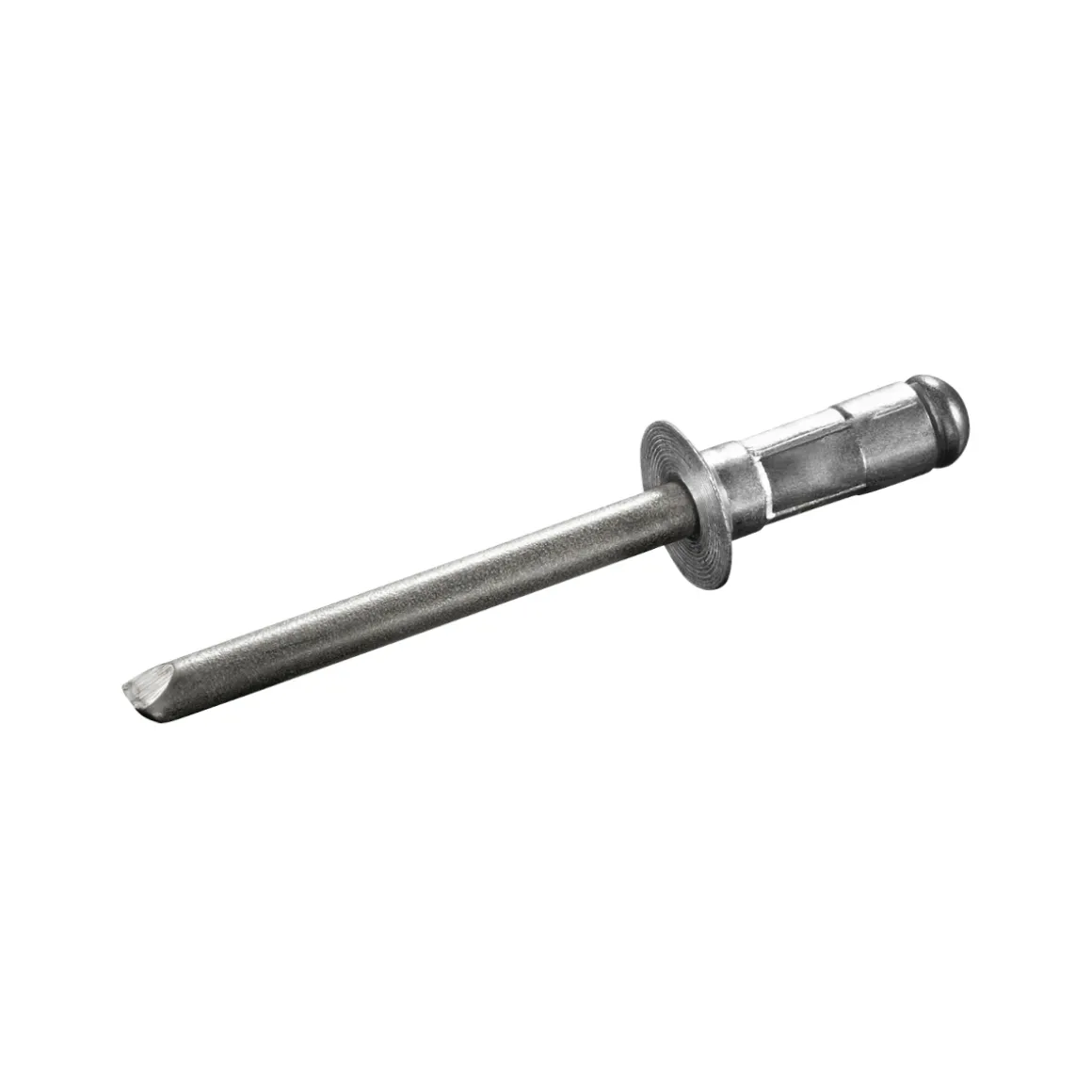

Mehrbereichsblindnieten Aluminium/Edelstahl A2 (Ø x L) 4,0 x 9,5 mm Senkkopf Niete – Mehrbereichsnieten – MULTI
Original price was: €94.60.€67.07Current price is: €67.07.
| Artikel | Mehrbereichs–Blindniete Mehrbereichsblindniete MULTI AL/A2 – Senkkopf – 4,0x9,5 mm |
| Artikelnummer | 7774440950 |
| Produkttyp | Mehrbereichs–Blindniete |
| Markenname | MULTI |
| Hersteller | Goebel GmbH |
| Werkstoff Dorn | Edelstahl A2 [ 1.4301 ] |
| Werkstoff Hülse | Aluminium AlMG 2,5 |
| Kopfform | Senkkopf |

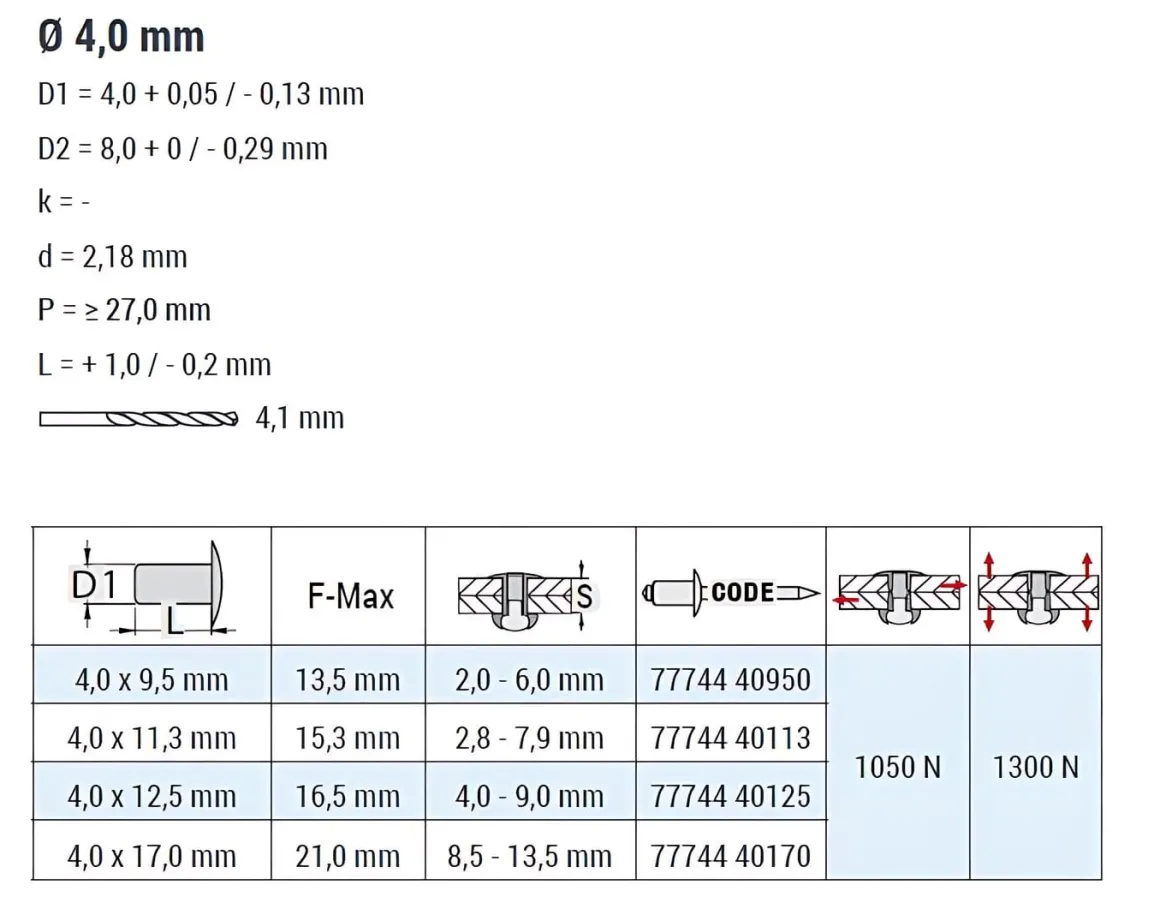

| Durchmesser (mm) | 4,0 |

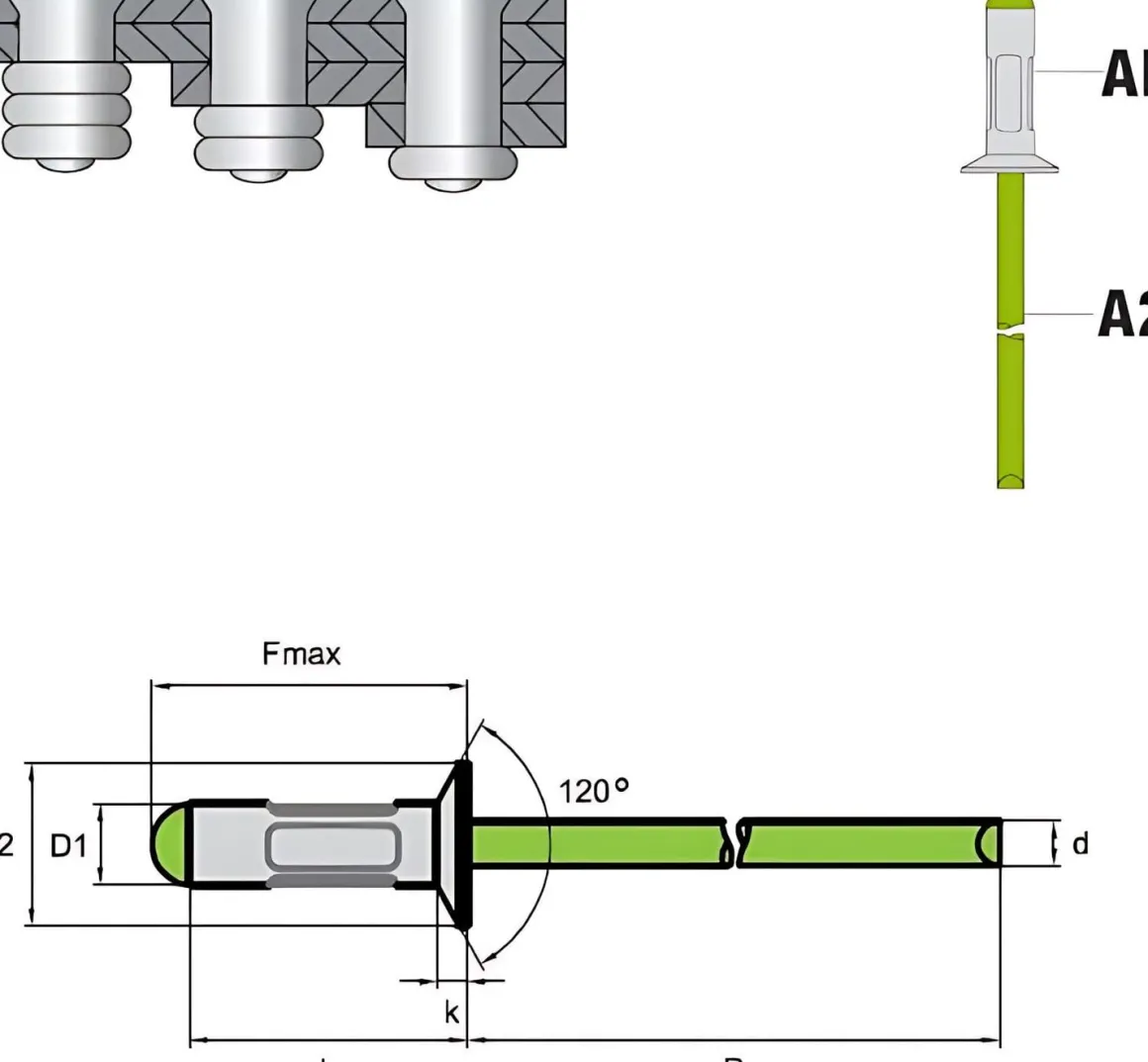

| Durchmesser Kopf (D2) | 8,0 + 0 / – 0,29 mm |
| Nietdorn Durchmesser (d) | 2.18 mm |
| D1 Toleranz | 4,0 + 0,05 / – 0,13 mm |
| Nenndurchmesser (D1) | 4.0 mm |
| Bohrer (Durchmesser–Vorbohren) | 4,1 mm |
| Länge (mm) | 9,5 |
| Länge (L) Toleranz | + 1,0 / – 0,2 mm |
| Länge Nietdorn (P) | ≥ 27,0 mm |
| Senkkopf Grad | 120° |
| F–Max | 13.5 mm |
| Scherbruchlast | 1050 N |
| Zugbruchlast | 1300 N |
| Klemmbereich min. | 2,0 mm |
| Klemmbereich max. | 6,0 mm |
| Geeignet für | Innen |
| Passendes Werkzeug | GO–3, GO–55, GO–360, EL–48–R, GO–40, EL–64–R, GO–25–SN, EL–64–N, GO–12–R, AIRPOWER 1, AIRPOWER 2, GO–BR1 |
| VPE | 1000 |
